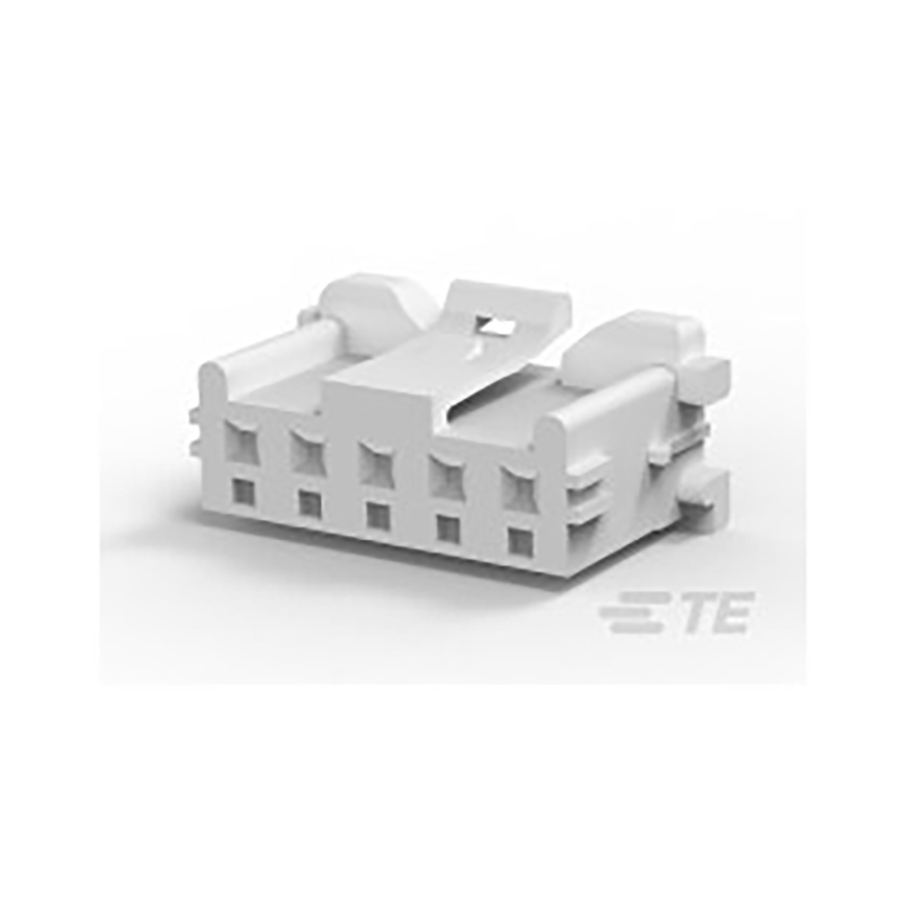

1376477-5
Manufacturer:
TE Connectivity
Mfr.Part #:
1376477-5
Datasheet:
Description:
Headers and Wire Housings Free Hanging Pin, Receptacle Number of Positions:5 Pitch:2.5 mm
| Parameter | Value |
|---|---|
| Length | 15 mm |
| Termination | Crimp |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -22 °C |
| Height | 6.5024 mm |
| Packaging | Bulk |
| Depth | 8.3 mm |
| RoHS | Compliant |
| Lead Pitch | 2.5 mm |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2.5 mm |
| Current Rating | 2.5 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Straight |
| Operating Supply Voltage | 50 V |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Color | Natural |
| Gender | Female |
| Number of Contacts | 5 |
| ELV | Compliant |
| Connector Type | Pin, Receptacle |
| Wire/Cable Gauge | 22 AWG |
| Number of Positions | 5 |
| Number of Rows | 1 |
| Housing Material | Nylon |
| Fastening Type | Latch |
| Connector System | Wire-to-Board |
| Max Voltage Rating (AC) | 50 V |
| Contact Current Rating | 2.5 A |
| Wire Gauge (Max) | 26 AWG |
| Wire Gauge (Min) | 22 AWG |
| Housing Color | Natural |
| Sealable | No |
| Mating Retention | With |
Stock: 331
Distributors
pcbx
pcbxUnit Price$0.08381
Ext.Price$0.08381
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.08381 | $0.08381 |
| 10 | $0.07494 | $0.74940 |
| 50 | $0.06701 | $3.35050 |
| 100 | $0.05952 | $5.95200 |
| 500 | $0.05287 | $26.43500 |
| 1000 | $0.04914 | $49.14000 |
| 3000 | $0.04567 | $137.01000 |
